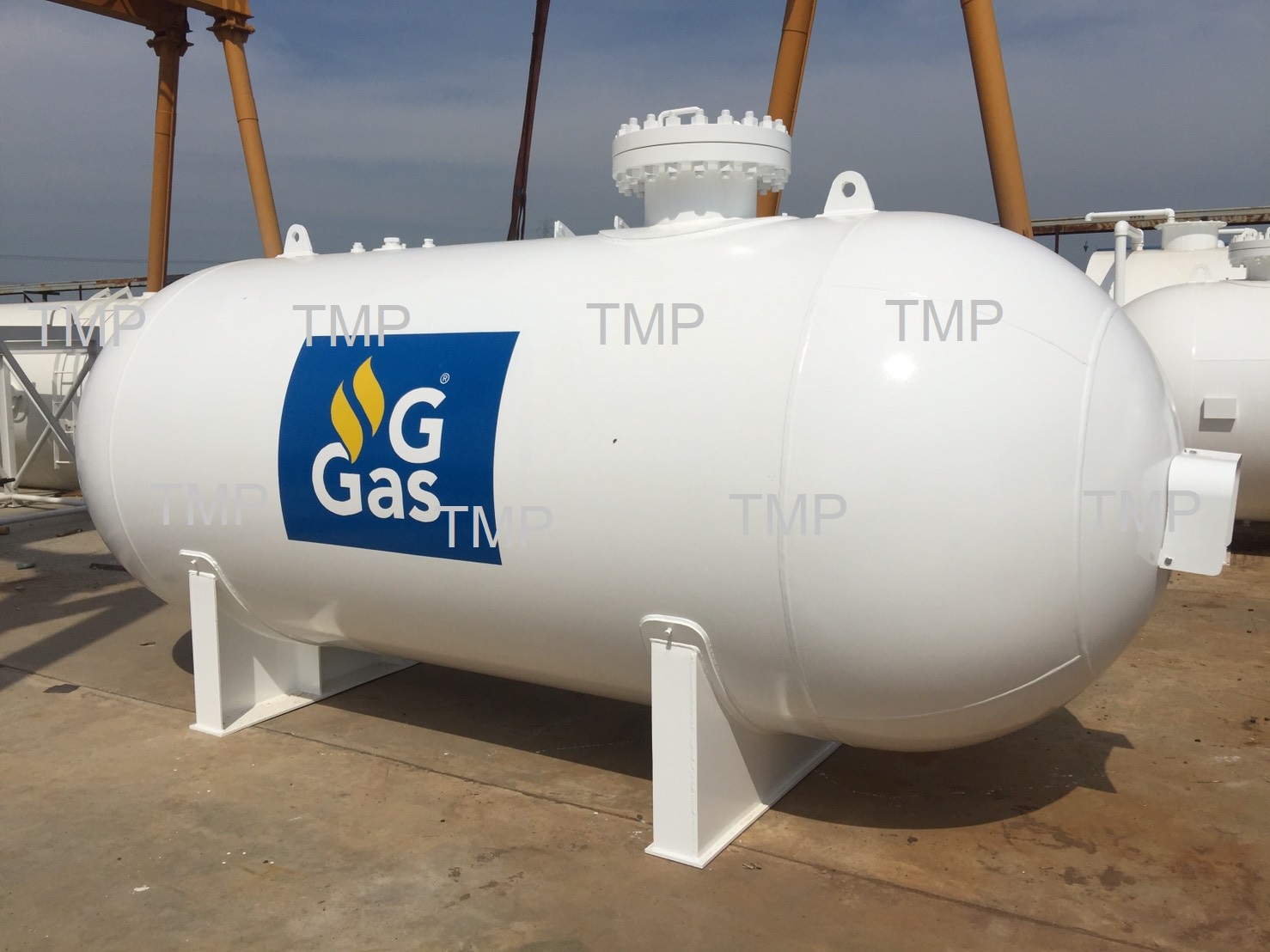

LPG Above Ground Storage Tank

Above Ground LPG Storage Tanks

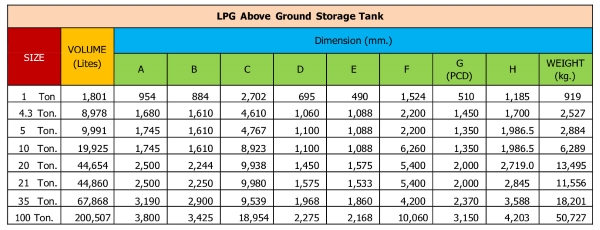

Size 4.3 – 100 Tons

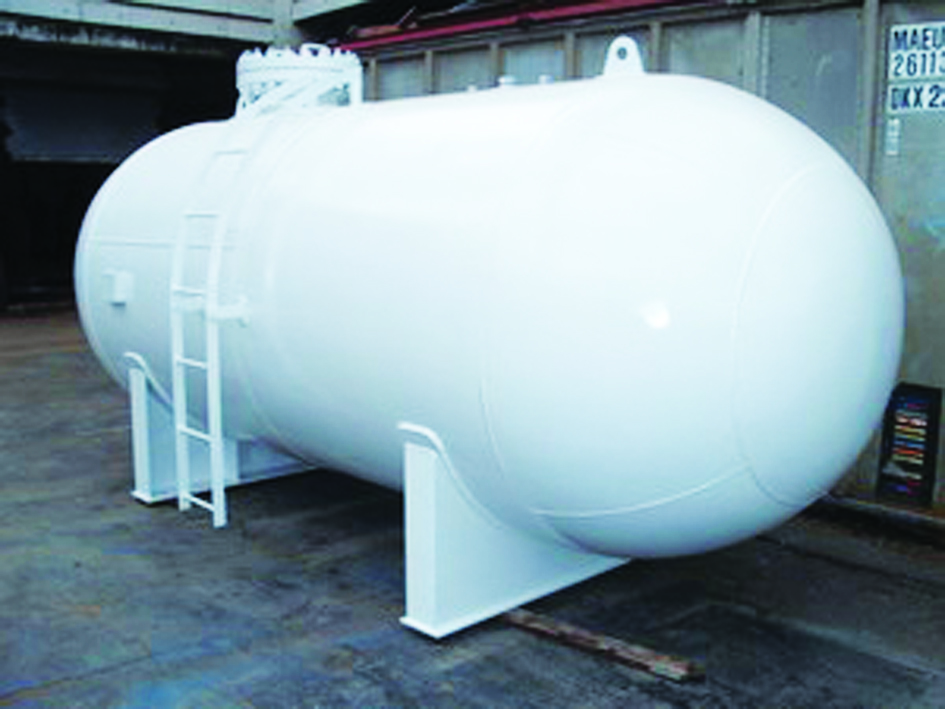

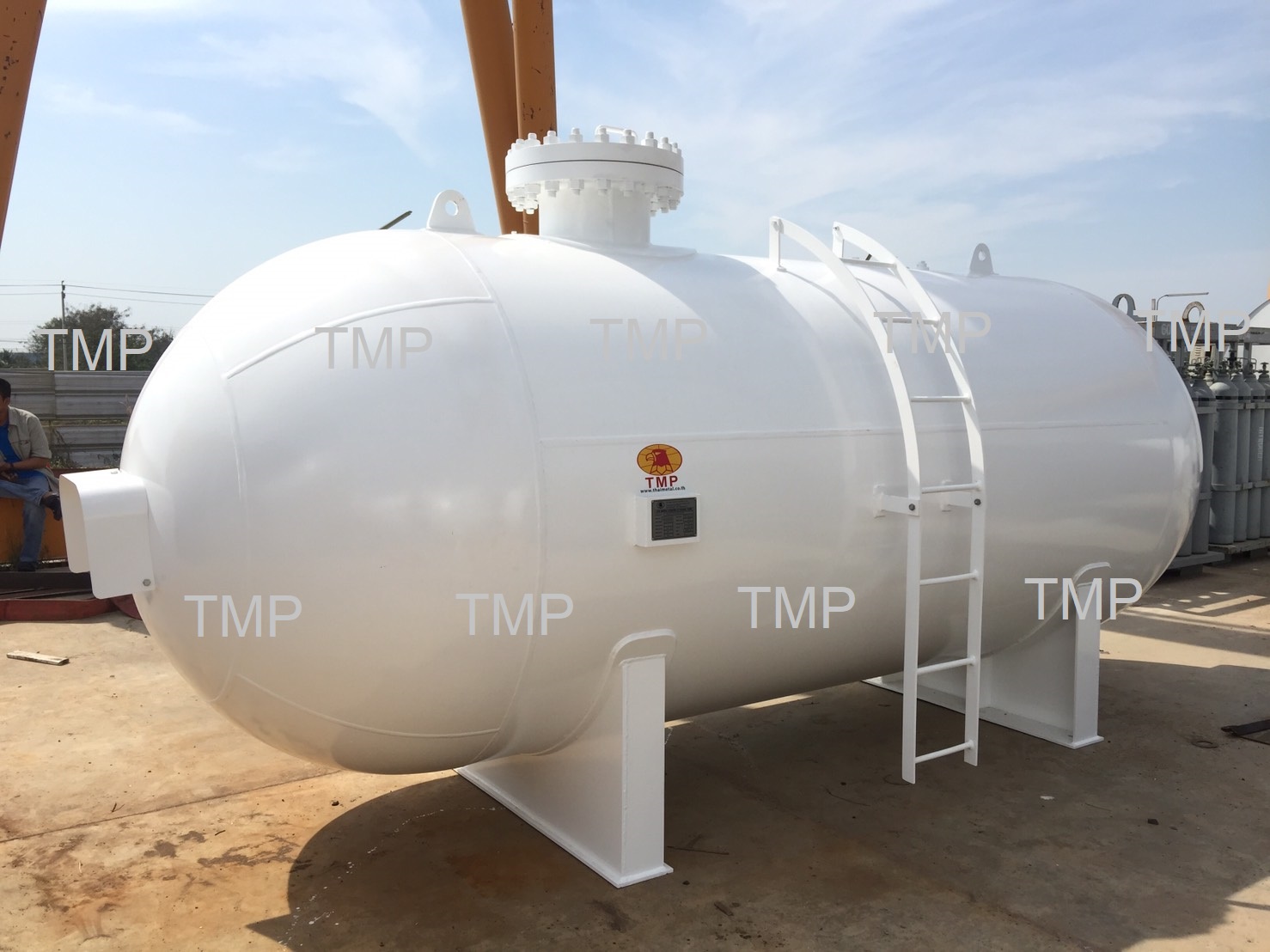

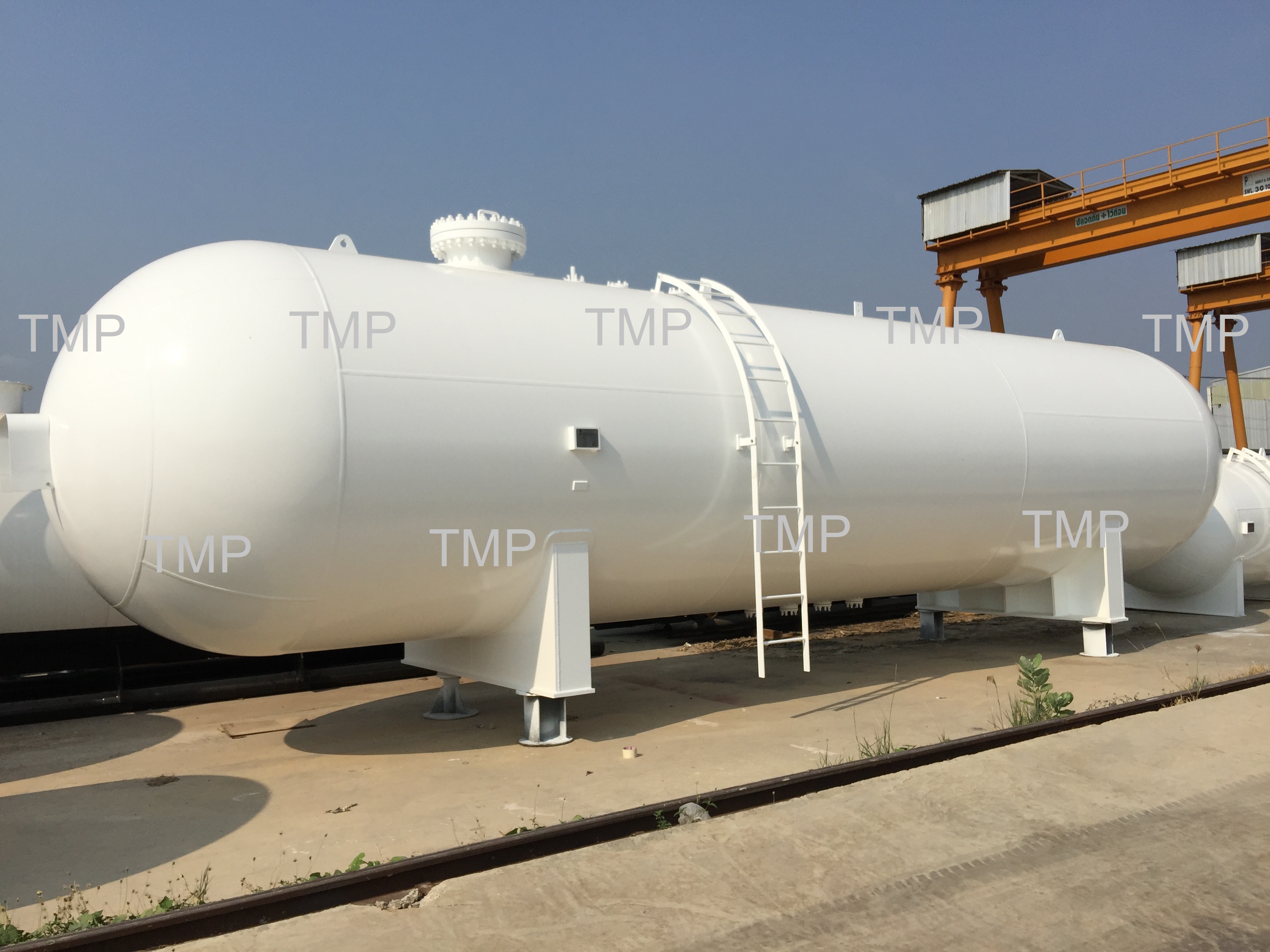

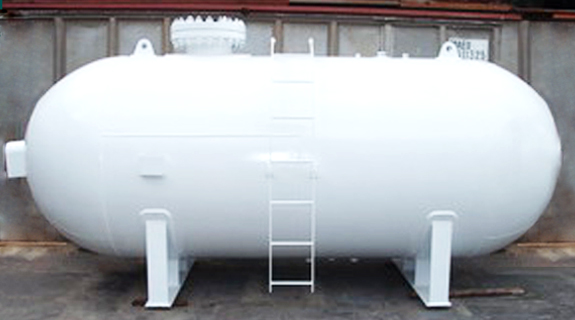

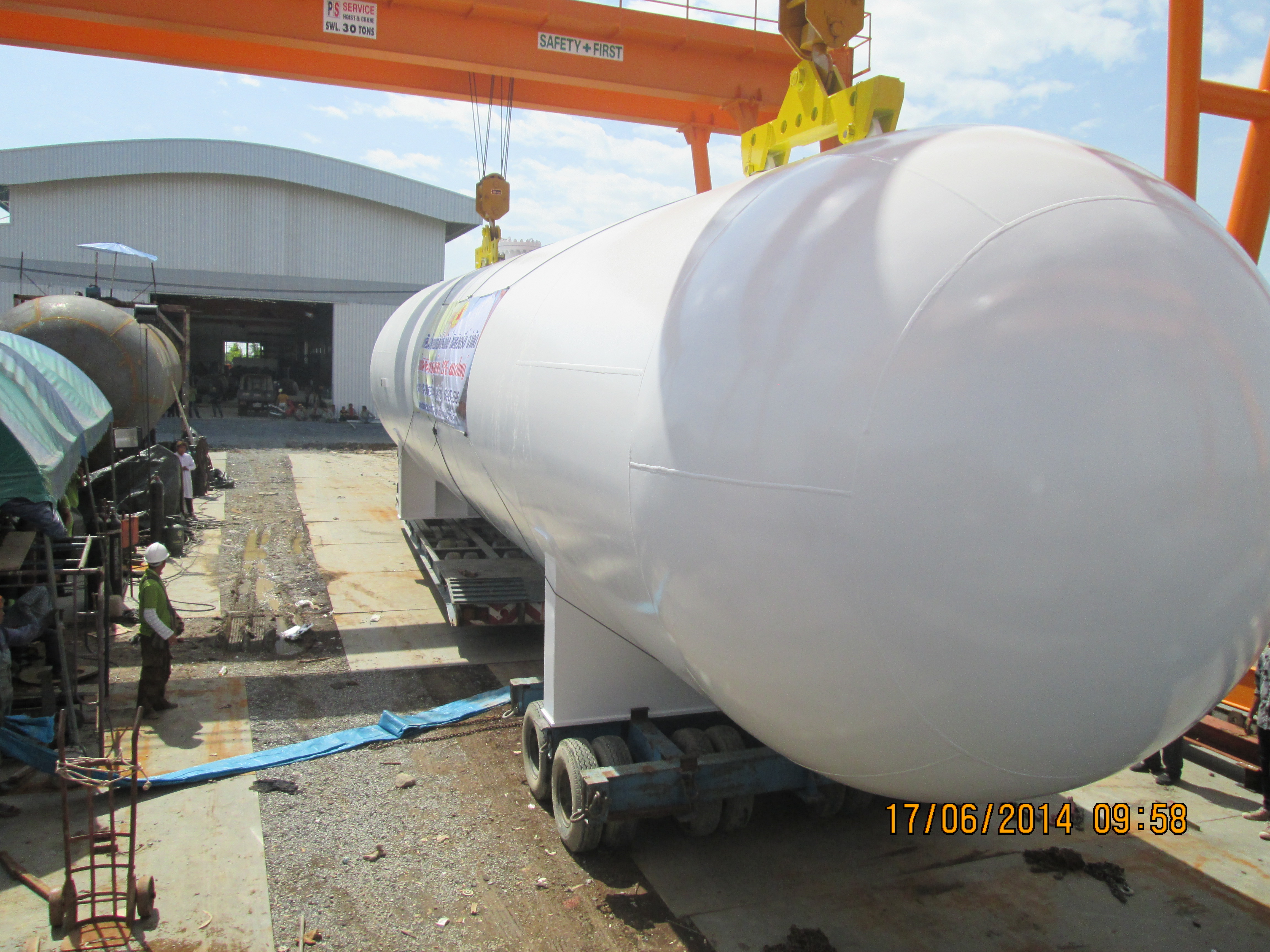

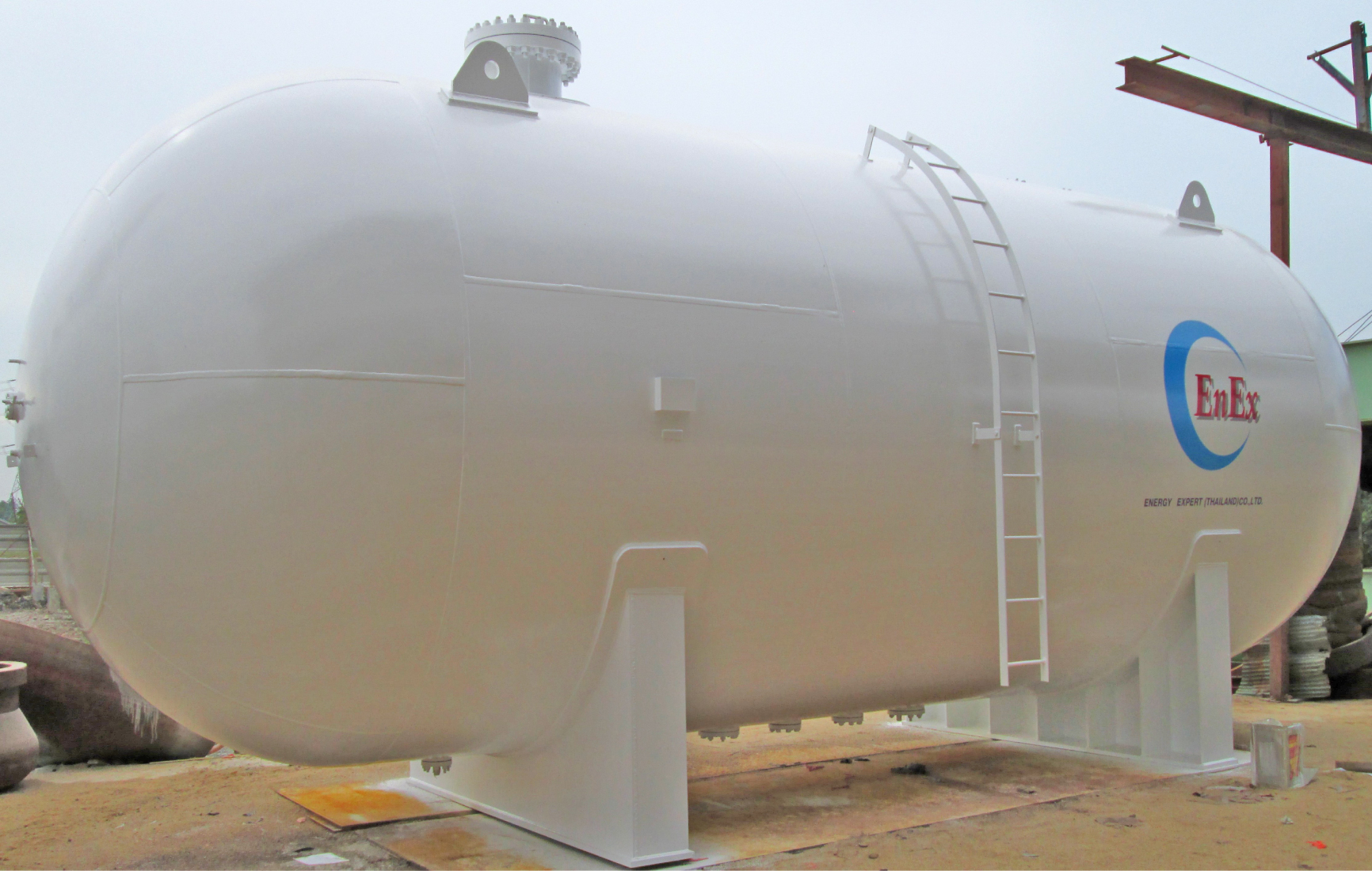

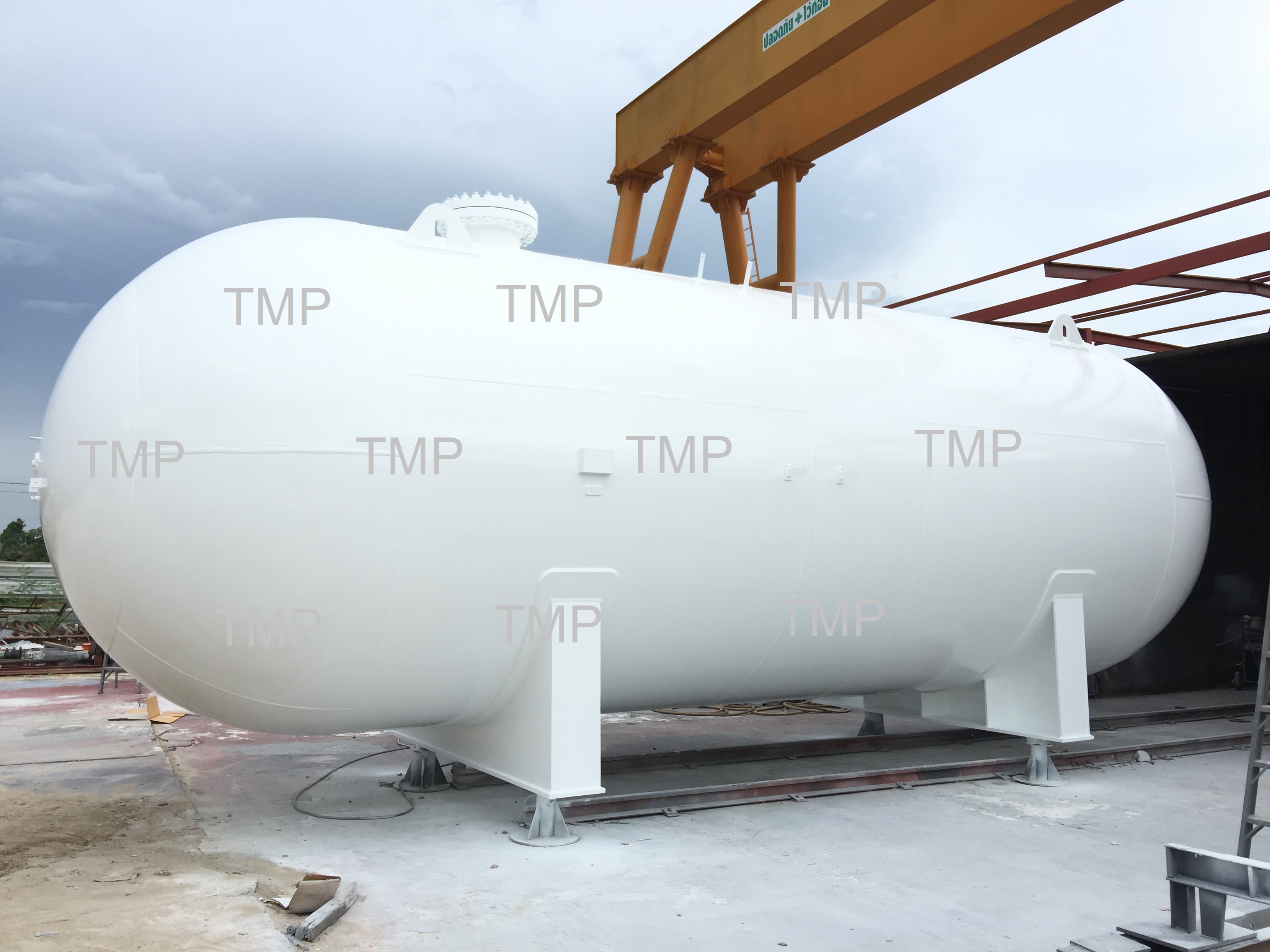

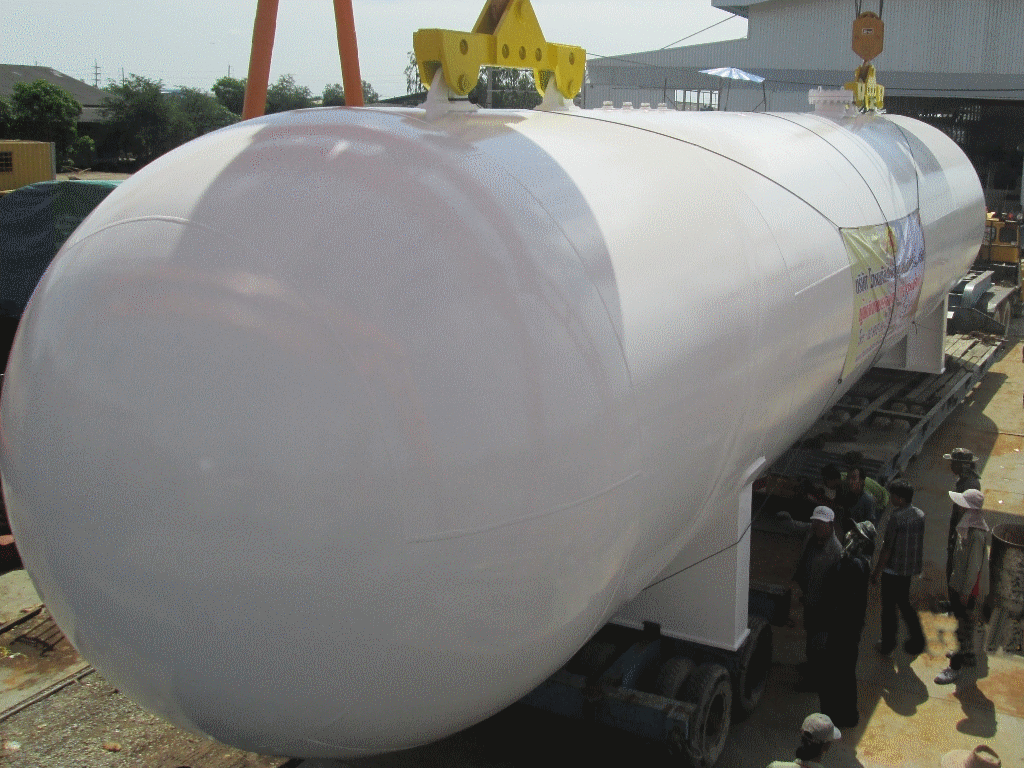

Above ground storage tanks are horizontal pressure vessels which are intended for the pressurized storage of Liquid Petroleum Gas (LPG) under ambient temperature. Thai Metal Product Industry Co., Ltd. designs under (ASME) Section 8 Division 1 with Design Pressure Internal 17.6 kg/cm2  and Hydrostatic Test Pressure of 26.4 kg/cm2.  We manufacture Above Ground LPG Storage tanks’ sizes range from 4.3-100 Tons with fully facility, piping system and final commisioning.


  • Above ground storage installation is cost effectiveness comparing to mounded and underground tanks
  • Painting, Visual inspection and preventive maintenance are very easy.
  • Shorter Project installation time period.
