LPG For Truck and Semi-Trailer

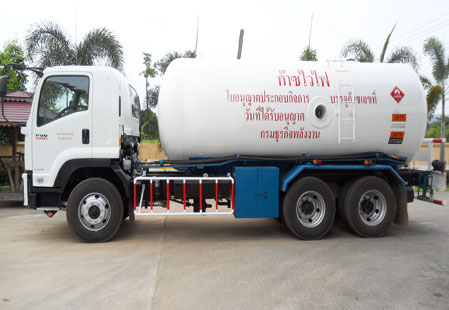

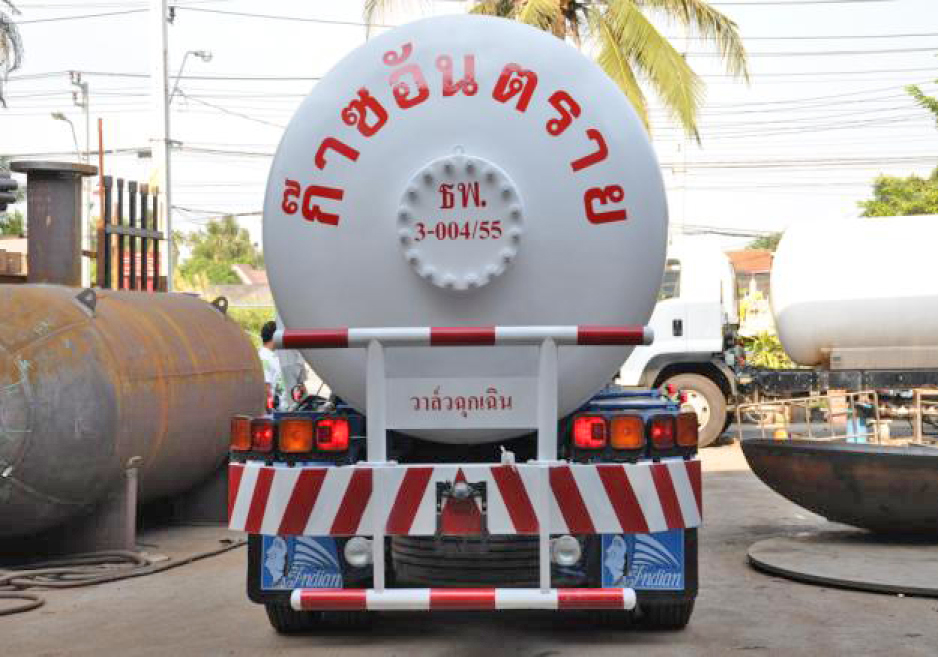

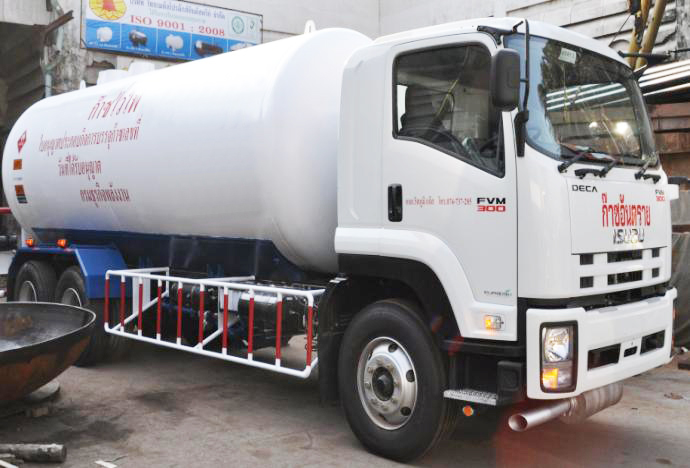

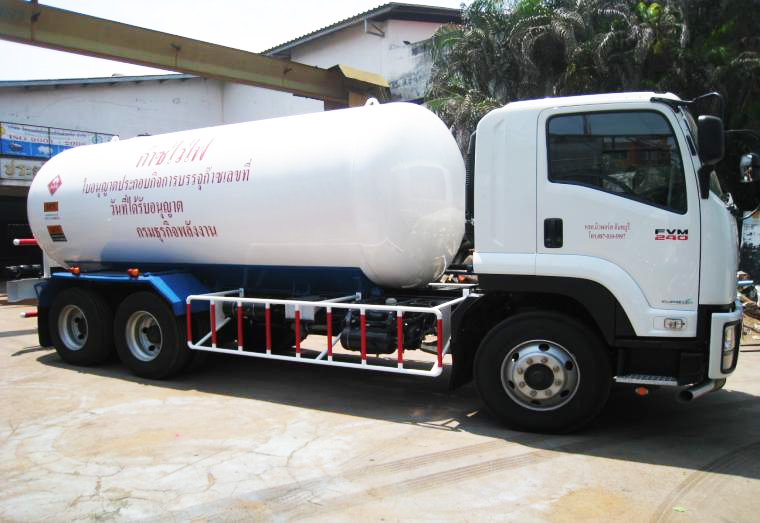

LPG For Truck and Semi-Trailer:  ( or LPG TANKER TRUCK TRAILER)

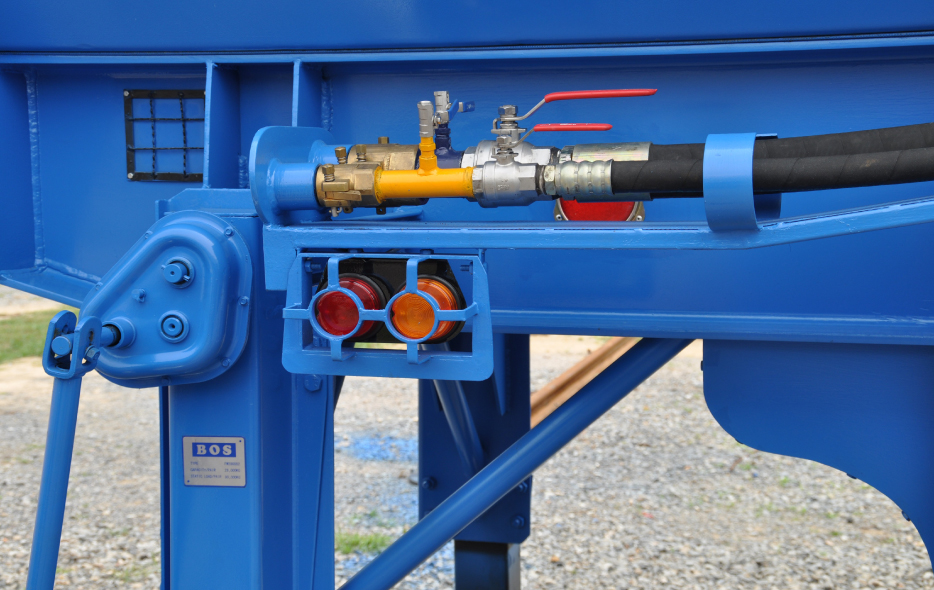

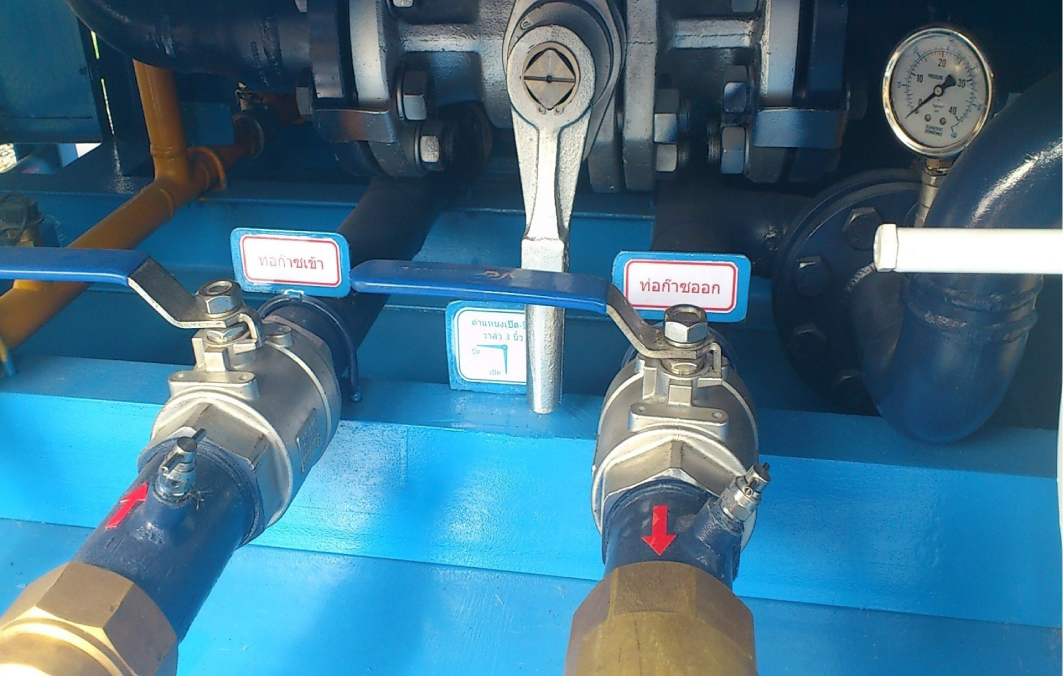

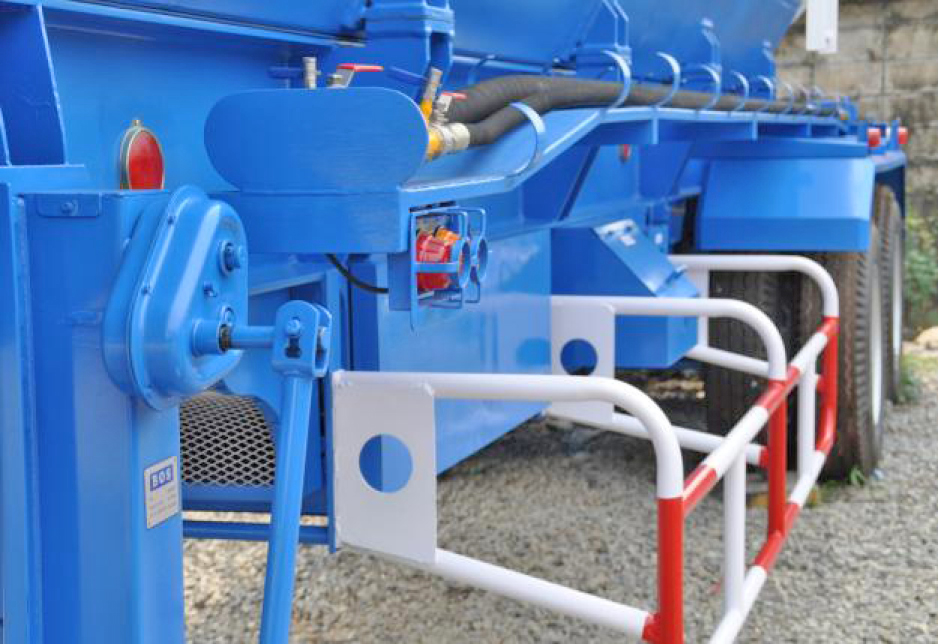

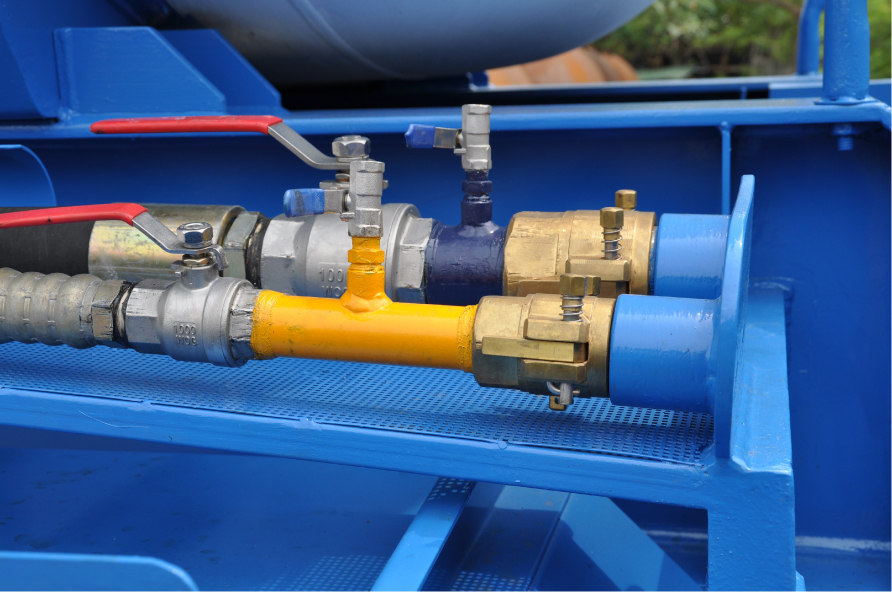

Size 8.4-16 Tons  Thai Metal Product Industry Co., Ltd. is a manufacture of LPG Semi-trailer tanks of various capacities ranging from 8.4-16 Tons. All auxiliaries like flow valves, valves, pipelines, mudguard, Tyres, internal valves, Excess safety fittings are provided as per requirements .The tanks are provided with unloading pumps for decanting. The unit comes with all safety features as per norms.

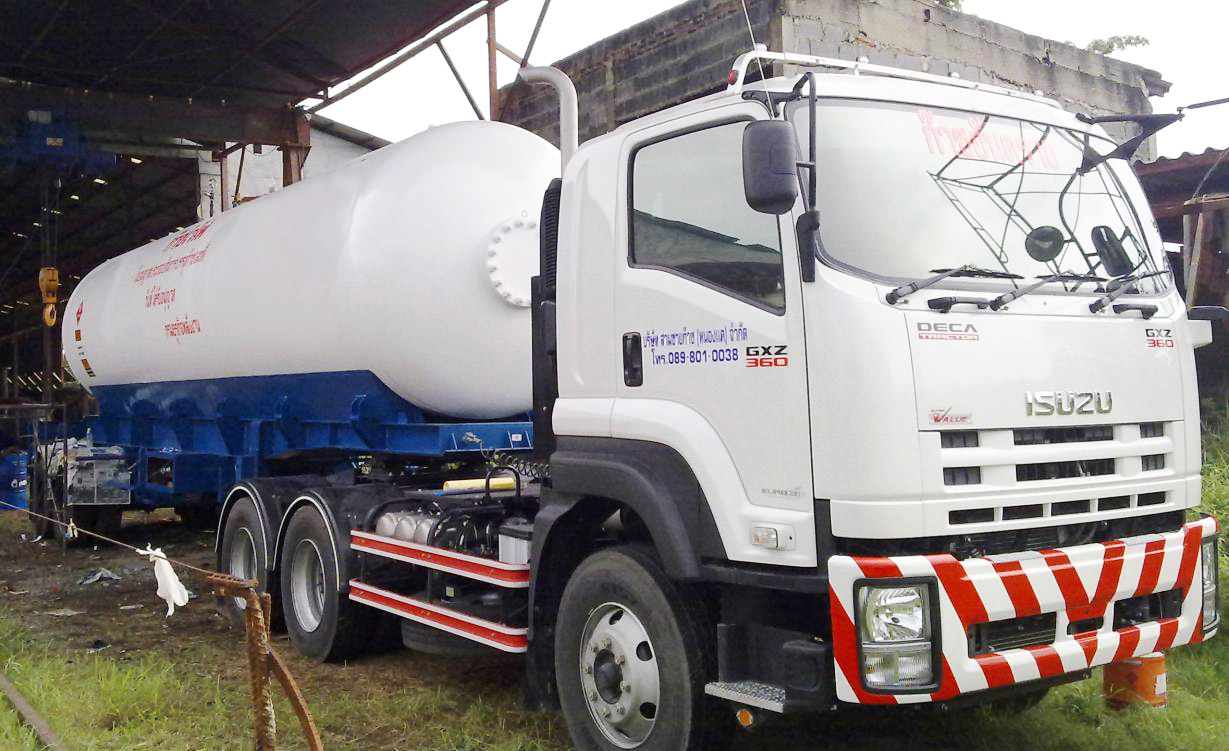

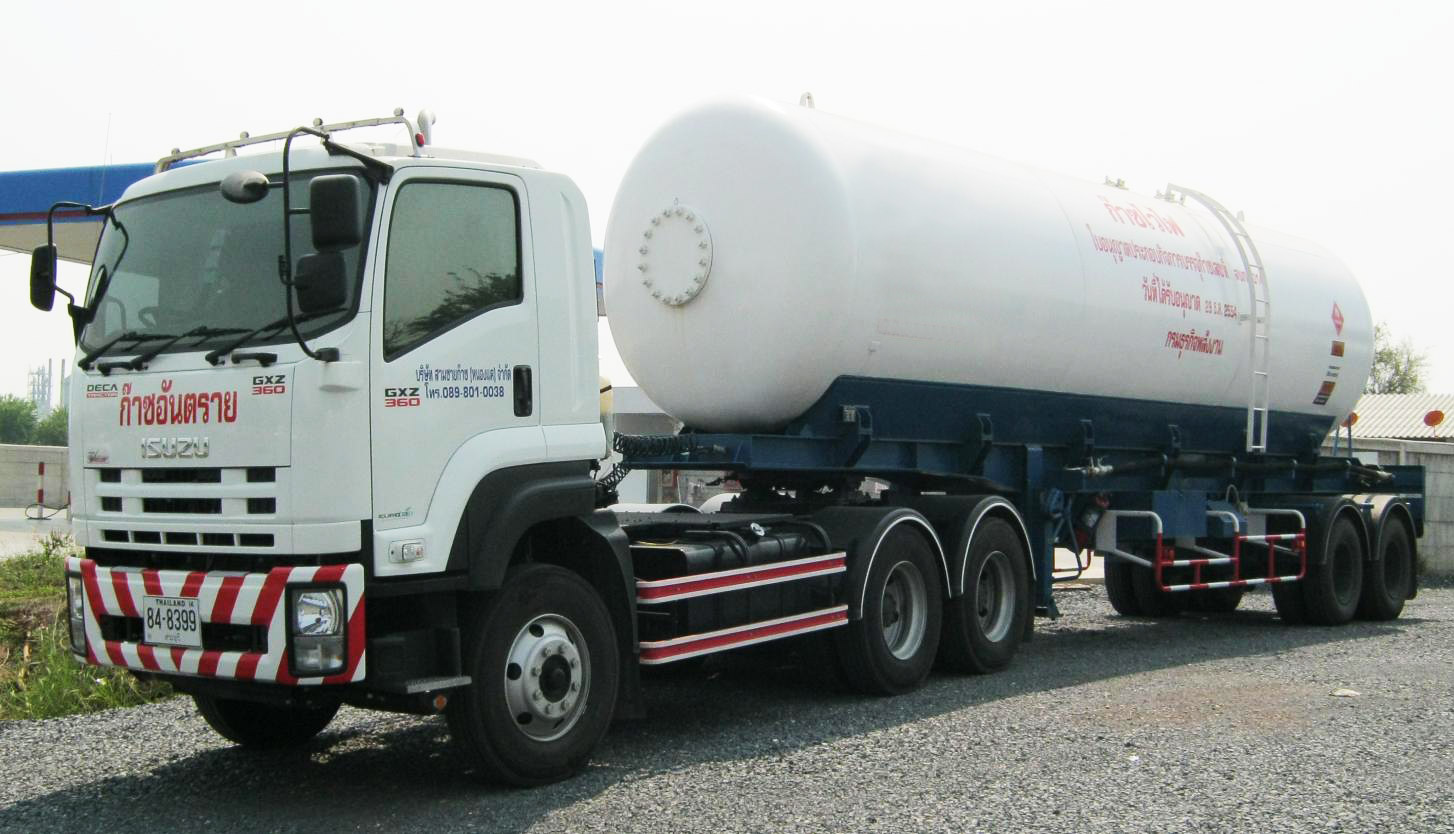

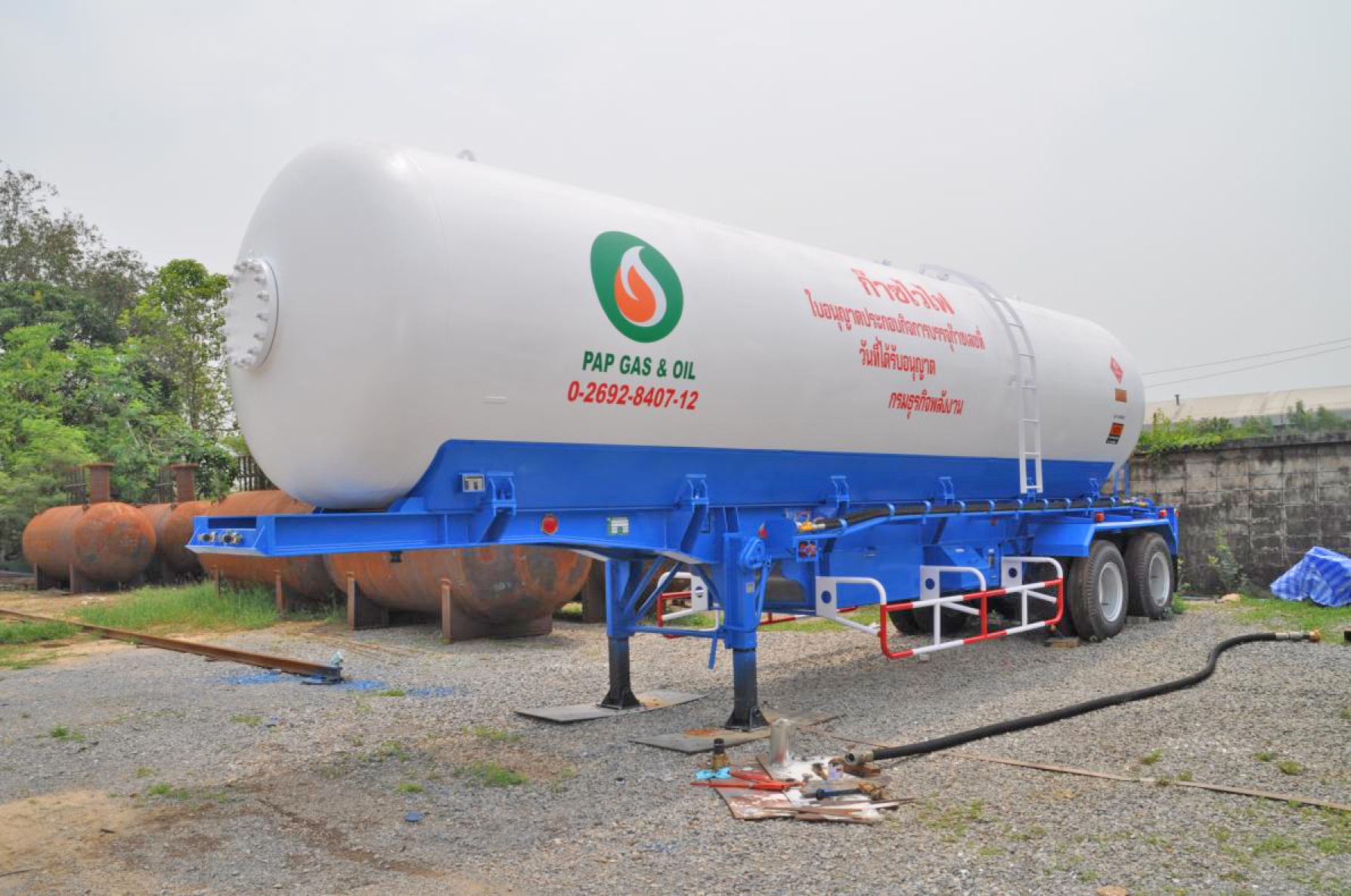

LPG tanker is a type of semi-trailer used on road transport.  LPG truck trailer structure consists of 3 main parts.
1. 1-3 axles according to volumetric structure and load capacity,
2. Chassis where axles are joined structure and
3. Steel tank body is approved by The Department of Land Transport and The Department of Energy



02

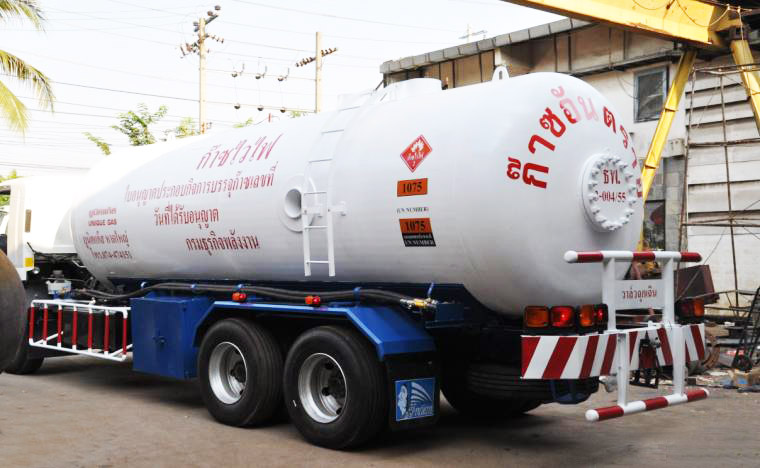

LPG LORRY Tank
SIZE VOLUME Material Dimension (mm.)
shell Thk. Head Thk. A B C D E F WEIGHT
8.4 Ton. 17,802 G3115 SPV410 13.5 14.5 2,000 6,028 4,924 2,056 110-180 1080-1200 5,097
10.2 Ton 21,940 G3115 SPV410 15.0 16.0 2,030 7,150 6,000 2,100 110-180 1080-1200 6,803
12 Ton. 25,976 G3115 SPV410 15.0 16.0 2,200 7,232 6,000 2,280 110-180 1080-1200 9,717
16 Ton. 34,034 G3115 SPV410 14.5 16.0 2,100 10,182 9,000 2,154 110-180 1080-1200 9,717
